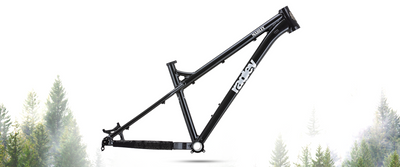

Ragley Marley Hardtail 275 Frame 2023 - £349.99

The new generation of Marley, our alloy 27.5’’ Trail bike. The Marley is now a classic in our range, light, punchy and versatile. A bike designed for the all-round rider with one love for all trails and doesn’t break the bank. With hardtails being pushed harder and faster than ever before we have tweaked the trusted Ragley recipe for modern tastes. Our bikes have always been at the forefront of fun versatile hardtails and with a sprinkle of love with the same Ragley ingredients the Marley has evolved further into the hardtail Trail bike of choice.

Striking a balance between descending capabilities and all-day riding, the Marley is for riders that ride with the saddle up as much as down. The Marley headtube has now been slackened to 65˚, complimented with a shorter seattube to drop your saddle further, increased reach and 5mm lower BB gives you highspeed confidence and technical stability. Then for when you bang the saddle back up, the steeper 75˚ seat-angle puts you in a comfortable, balanced and efficient pedalling position.

More control and more fun like no other hardtail Trail bike, with the updated Trail geometry the Marley is at home with epics into the mountains, sweet flat-out singletrack and laps at your favourite trail centre.

The Marley frame features all the modern no-nonsense fitting standards for easy serviceability. ISCG05 tabs, 44/56mm headtube, internal dropper routing, threaded BB and Boost 148x12mm rear wheel fitting. Engineered from custom butted 6061 Alloy tubing, offering a robust responsive frame but with balanced compliance and comfort.

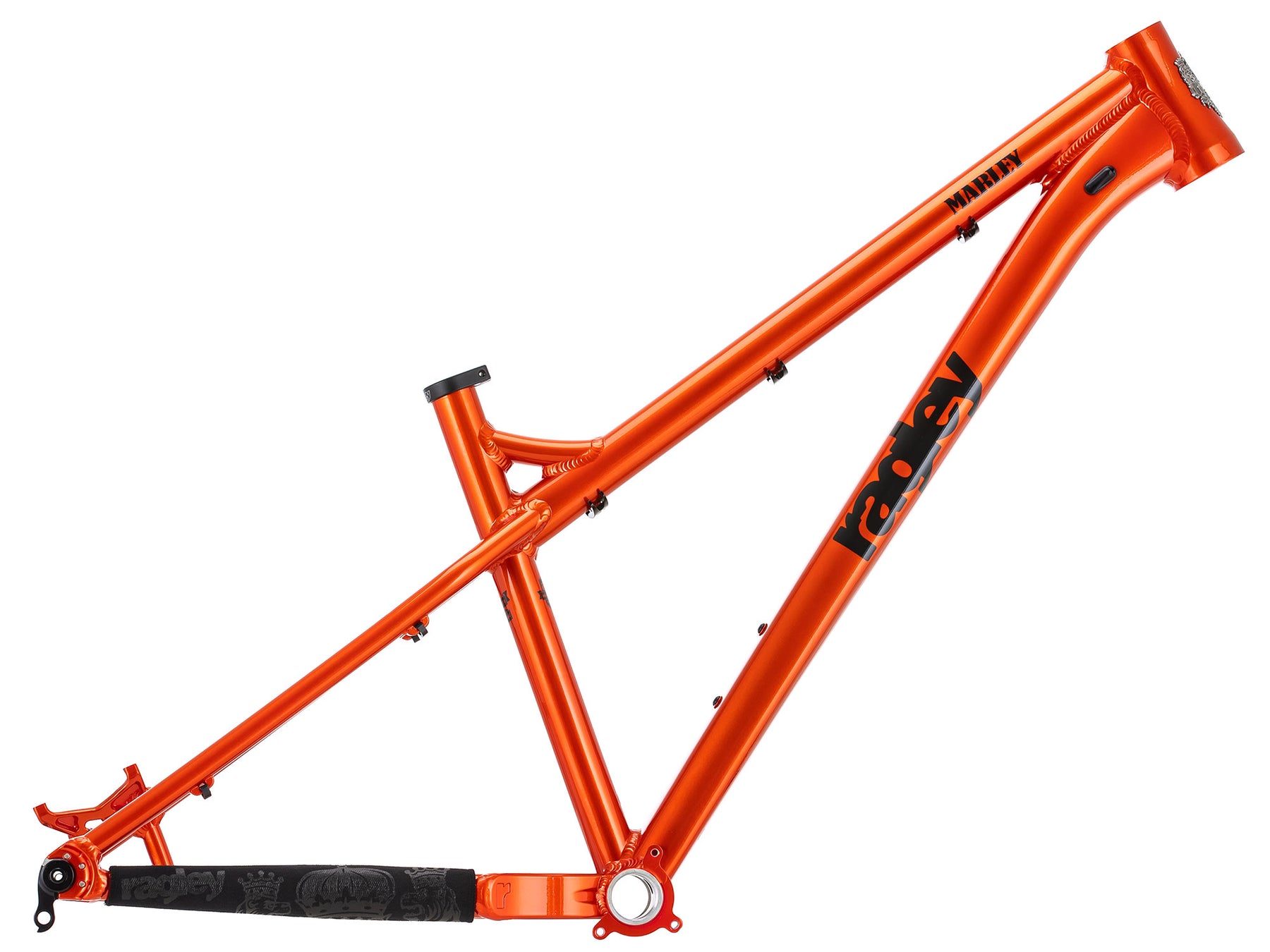

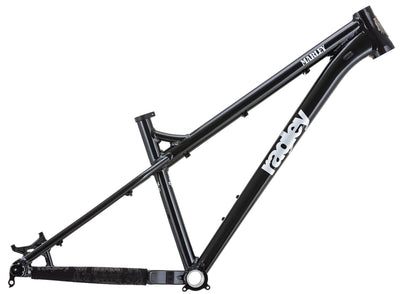

Marley Hardtail 275 Frame 2023

Regular price£349.99
/
Tax included.
Colour
Frame Material
Wheel Size
Marley Hardtail 275 Frame 2023
Marley Hardtail 275 Frame 2023

GEOMETRY & SIZING

SmallMediumLargeX-Large
(A) Reach420mm440mm460mm480mm
(B) Stack612mm621mm630mm639mm
(C) Effective Top Tube Length584mm606mm629mm651mm
(D) Seattube Length380mm410mm440mm470mm
(E) Seattube Angle (Actual)75757575
(F) Headtube Length110mm120mm130mm140mm
(G) Headtube Angle65656565
(H) Chainstay Length425mm425mm425mm425mm
(I) Wheelbase1145mm1169mm1193mm1218mm
(J) Bottom Bracket Drop-50mm-50mm-50mm-50mm
(K) Stand Over Height663mm667mm685mm687mm
(L) Fork Travel130mm – 140mm130mm – 140mm130mm – 140mm130mm – 140mm
(M) Fork Offset37mm37mm37mm37mm
(N) Axle to Crown 524mm 524mm 524mm 524mm

FRAME SPECIFICATIONS

Material6061 alloy
Recommended Fork Travel130mm – 140mm
Axle to Crown522mm (130mm Fork)
Fork Offset37mm
Wheels Size27.5''
Max Tyre Size2.6''
HeadtubeZS44/28.6 | ZS56/40
Seatpost31.6mm
Seat Clamp34.9mm
BB73mm BSA
Rear Hub12x148mm Boost
Rear Axle12mm x 148mm Thru-Axle M12*P1.5x175mm
Chain GuideISCG 05 Tabs
Brake MountPM160
ProtectionChainstay Protector
