Ragley Blue Pig Race Hardtail Bike 2021 - £2,299.99

The Ragley Blue Pig Race takes hardcore trail riding to the next level. With more suspension travel and an exceptional component spec, this bike is ideal for all-mountain explorations, hardtail enduro racing, demanding singletrack terrains and daring descents. Plus, it's equipped with a RockShox Lyrik 160mm travel suspension fork, a Shimano SLX 12-Speed groupset and Nukeproof Horizon tubeless ready wheels.

If you have heard of Ragley, you already know the Blue Pig name. From the early days of the ‘hardcore hardtail’ it has pushed the geometry envelope and been loved by anyone who rides for all-out grin-inducing fun.

The Blue Pig Race takes the best bits from the standard Blue Pig and gives it another shot of adrenalin.

RockShox Lyrik 160mm Suspension Forks and Shimano SLX 12-Speed Groupset

The Race version gets an additional 10mm of travel from a RockShox Lyrik RC, slackening out the head angle and making it even more capable on the rough stuff. Other upgrades include a full SLX 12-speed groupset and Nukeproof’s new Horizon wheelset, now used by their multiple EWS winning race team.

Get your weight down, spot the turn, keep off the brakes and let it fly. The only limitation here is your bottle.

Features:

  • Steel Frame
  • Available in S, M, L and XL
  • 27.5" Wheel
  • 160mm fork

Blue Pig Race Hardtail Bike 2021

£2,299.99
/
Tax included.
Colour
Wheel Size
Fork Travel
Blue Pig Race Hardtail Bike 2021

FULL SPECS

FrameRagley Blue Pig 27.5" 4130 Chromoly
ForkRockshox Lyrik Select 160mm, 27.5", 15x110mm Boost, Stealth Maxle, 46mm Offset, 1.5" Tapered
WheelsetNukeproof Horizon 32H, Boost, Microspline, 102 points of engagement, Enduro bearings
ShifterShimano XT, M8100 12 Speed, Direct attach to brake lever using iSpec EV

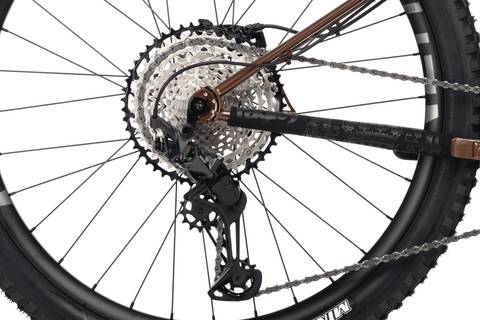

Rear DeraileurShimano XT M8100, SGS 12 Speed, Shadow Plus
ChainShimano SLX M7100 12-speed
CassetteShimano SLX M7100, 12 speed, 10-12-14-16-18-21-24-28-33-39-45-51T
Chain GuideN/A

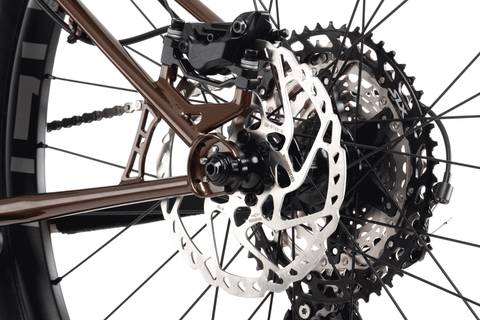

BrakesShimano SLX M7100 lever with M7120 caliper, 4-pot, resin pads with fin
Rotors203mm/180mm
TyresMaxxis 27.5" x 2.5" Assegai 3C MaxxTerra/EXO+/TR, Maxxis 27.5X2.40 WT MINION DHR II 3C MaxxTerra/EXO+/TR 120tpi
HandlebarsRagley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width - S780mm, M780mm, L800mm, XL800mm)
StemRagley Stubbing V2 40mm, 31.8mm clamp, Black
SaddleRagley Tracker Saddle
SeatpostBrand-X Ascend Internal Route Post - 31.6mm, SM - 125mm Drop, MD -150mm Drop, LG/XL – 170mm Drop
HeadsetNukeproof ZS44/28.6 | EX44/40 with Ragley top cap
GripsRagley A20 Compound
Weight: (Size Medium)TBD

GEOMETRY & SIZING
SmallMediumLargeX-Large
(A) Reach420mm440mm460mm480mm
(B) Stack614mm623mm632mm641mm
(C) Effective Top Tube Length596mm619mm641mm665mm
(D) Seattube Length380mm420mm460mm500mm
(E) Seattube Angle (Actual)74747474
(F) Headtube Length100mm110mm120mm130mm
(G) Headtube Angle63.7563.7563.7563.75
(H) Chainstay Length425mm425mm425mm425mm
(I) Wheelbase1170mm1194mm1219mm1243mm
(J) Bottom Bracket Drop-45mm-45mm-45mm-45mm
(K) Stand Over Height746mm750mm778mm806mm
(L) Fork Travel150mm150mm150mm150mm
(M) Fork Offset46mm46mm46mm46mm
(N) Axle to Crown 542mm542mm542mm542mm

FRAME SPECIFICATIONS
Material4130 Cro-Mo Steel
Recommended Fork Travel150mm – 160mm
Axle to Crown542mm (150mm Fork)
Fork Offset46mm
Wheels Size27.5''
Max Tyre Size2.6''
HeadtubeZS44/28.6 | EX44/40
Seatpost31.6mm
Seat Clamp34.9mm
BB73mm BSA
Rear Hub12x148mm Boost
Rear Axle12mm x 148mm Thru-Axle M12*P1.5
Chain GuideISCG 05 Tabs
Brake MountMount: Post 160mm
ProtectionChainstay Protector
