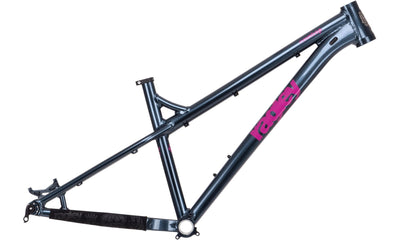

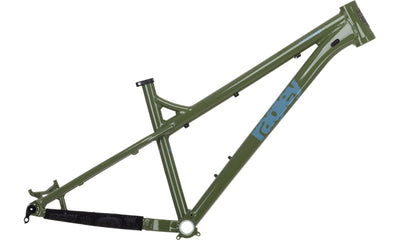

Ragley Mmmbop Hardtail Frame 2021 - £349.99

The Ragley Mmmbop is a long-travel hardtail frame that's suited to fast and rough terrains anywhere on the mountainside. This versatile, aggressive and dependable hardtail frame has recommended max fork travel of 160mm and features Boost dropout spacing, a tapered headtube and modern geometry. Plus, it's engineered to use 27.5" wheels with a max tyre clearance of 2.6" and has a BSA threaded bottom bracket shell.

The Mmmbop is here for the fun times. Slack, aggressive and built to hang with any of your full-suspension riding mates. Perfect to ride all-day but drop the saddle and the magic happens. Using 6061 alloy tubing, the Mmmbop balances a stiff frame with enough compliance for the longest of days in the saddle.

A 63.75 degree head angle inspires confidence on the steeps so whether you’re entering the hardtail category at an enduro race, exploring a backcountry epic or just smashing around the local woods, the Mmmbop is ready for anything.

Mmmbop Hardtail Frame 2021

Regular price£349.99
/
Tax included.
Colour
Frame Material
Wheel Size
Mmmbop Hardtail Frame 2021
Mmmbop Hardtail Frame 2021

GEOMETRY & SIZING

SmallMediumLargeX-Large
(A) Reach420mm440mm460mm480mm
(B) Stack610mm619mm628mm637mm
(C) Effective Top Tube Length595mm617mm640mm663mm
(D) Seattube Length380mm420mm460mm500mm
(E) Seattube Angle (Actual)74747474
(F) Headtube Length110mm120mm130mm140mm
(G) Headtube Angle63.7563.7563.7563.75
(H) Chainstay Length425mm425mm425mm425mm
(I) Wheelbase1167mm1192mm1217mm1241mm
(J) Bottom Bracket Drop-45mm-45mm-45mm-45mm
(K) Stand Over Height740.5mm750mm758mm778mm
(L) Fork Travel150mm150mm150mm150mm
(M) Fork Offset42mm42mm42mm42mm
(N) Axle to Crown 542mm (150mm Fork)542mm (150mm Fork)542mm (150mm Fork)542mm (150mm Fork)

FRAME SPECIFICATIONS

Material6061 Aluminium Alloy
Recommended Fork Travel150mm – 160mm
Axle to Crown542mm (150mm Fork)
Fork Offset42mm
Wheels Size27.5''
Max Tyre Size2.6''
HeadtubeZS44/28.6 | ZS56/40
Seatpost31.6mm
Seat Clamp34.9mm
BB73mm BSA
Rear Hub12mm x 148mm Boost
Rear Axle175mm x M12*P1.5
Chain GuideISCG 05 Tabs
Brake MountPost 160mm
ProtectionChain Stay Protector
